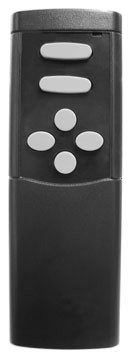

CUSTOM REMOTE CONTROL SYSTEMS
Custom Remote Options
Max Key Count | 8 (2 rocker keys) | |
Dimensions | 4.76x1.65x0.6 in. 126x42x17 mm |
|
Feedback LED | Yes, available | |
Overlay | Yes, available | |
Back Label | Yes, available | |
IR LED lens | no | |
IR Emitter Count | 1 |
Range | 20-30ft (6-9m) | |
Power Supply | 2 x AAA Battery | |
Power Consumption | Approx. 50mA at IR Transmit | |
Case Material | ABS Plastic | |
Keypad Material | Silicone Rubber | |
Operating Temperature | +5C to +40C | |
Storage Temperature | -40C to +70C | |
Humidity Range | 10% to 90% non-condensing | |
Infrared Frequency | 38KHz, others available | |
IR Formats | NEC, RC5, Sony, Custom as Specified | |
Compliance | RoHS, Lead Free |
