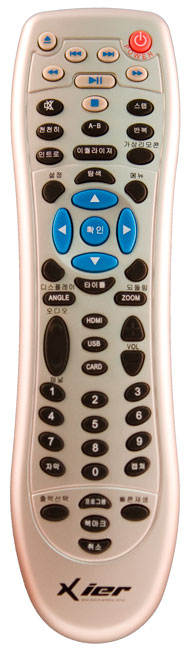

CUSTOM REMOTE CONTROL SYSTEMS
Custom Remote Options
| Max Key Count | 53 | |
| Dimensions | 4.7 x 2 x 1.2 in. 119 x 52 x 31 mm |
|
| Feedback LED | Yes, available | |
| Overlay | no | |
| Back Label | Yes, available | |
| IR LED lens | no | |
| IR Emitter Count | 1 |
| Range | 20-30ft (6-9m) | |
| Power Supply | 2 x AAA Battery | |
| Power Consumption | Approx. 50mA at IR Transmit | |
| Case Material | ABS Plastic | |
| Keypad Material | Silicone Rubber | |
| Operating Temperature | +5C to +40C | |
| Storage Temperature | -40C to +70C | |
| Humidity Range | 10% to 90% non-condensing | |
| Infrared Frequency | 38KHz, others available | |
| IR Formats | NEC, RC5, Sony, Custom as Specified | |
| Compliance | RoHS, Lead Free |
